Pizzolato Amplifiers - Universal Chassis STANDARD

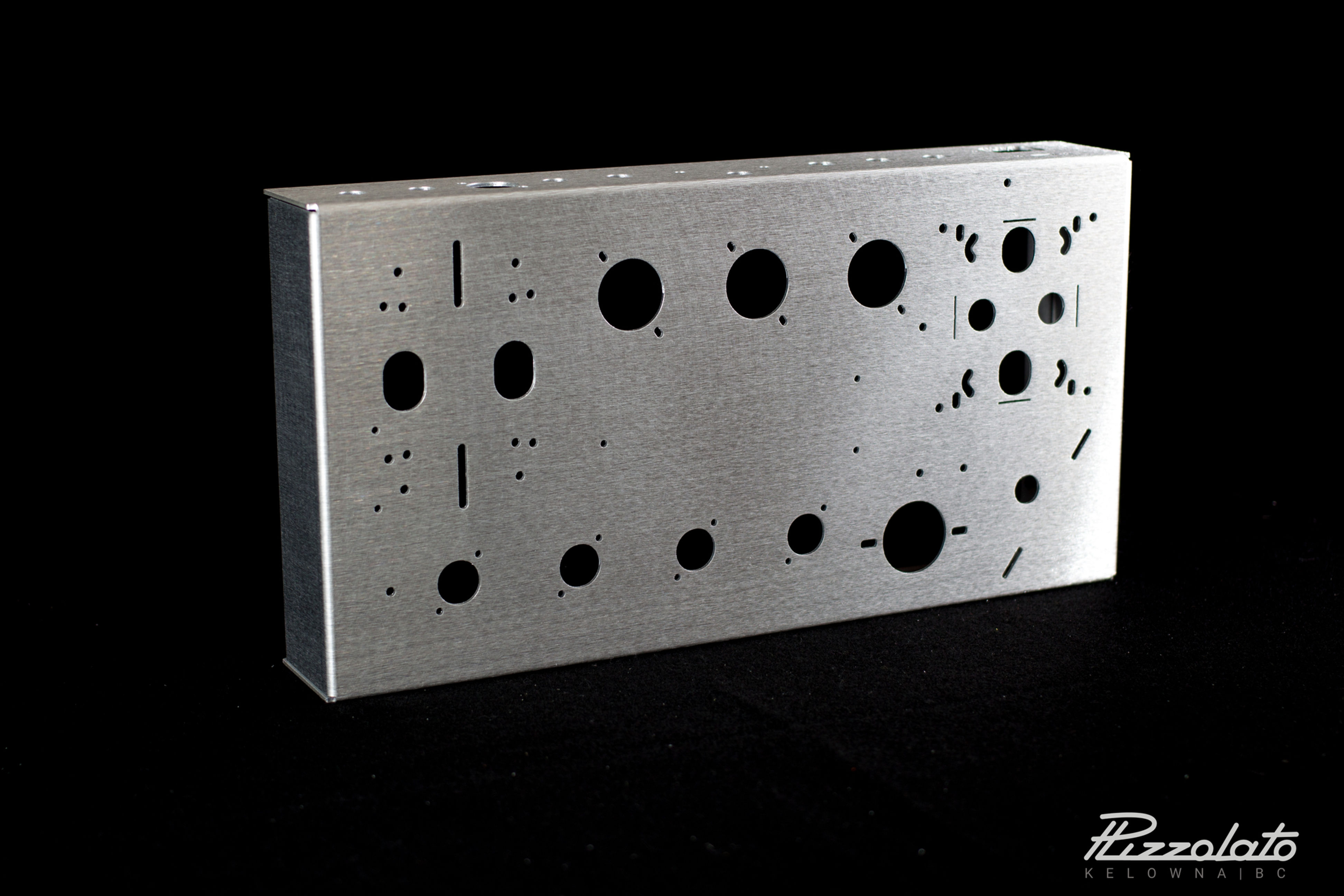

This is our very own universal tube amp chassis design.
Note: The standard option doesn't include any hardware besides the four screws to secure the lid.
We thought about every single detail to make it as easy as possible for both beginners and experienced amplifier builders, to put together an audio amplifier.
Our exclusive design can be used for not only guitar/bass amplifiers but also hi-fi and other projects.
It is pre-drilled for the most common jacks, potentiometers, switches, tube sockets, fuses, power
connector and a variety of power and output transformers.
The possibilities are endless with this chassis.
You can easily wire circuits that use:
- up to 4 noval tubes, 2 octal/noval* power tubes and 1 octal rectifier
- up to 5 noval tubes and 2 octal/noval* power tubes
As the chassis is made of aluminum you can easily drill more or enlarge existing holes.
Check the additional info section for more detailed information on direct drop-in transformers and available holes.
Material: 5052 Brushed Aluminum - 2mm
Dimensions: Imperial: 15.6 x 8 x 2.5 inches Metric: 396 x 204 x 62 cm
Weight: Chassis: 1.7lb or 764g Lid: 0.9lb or 406g
What is Included with the chassis?

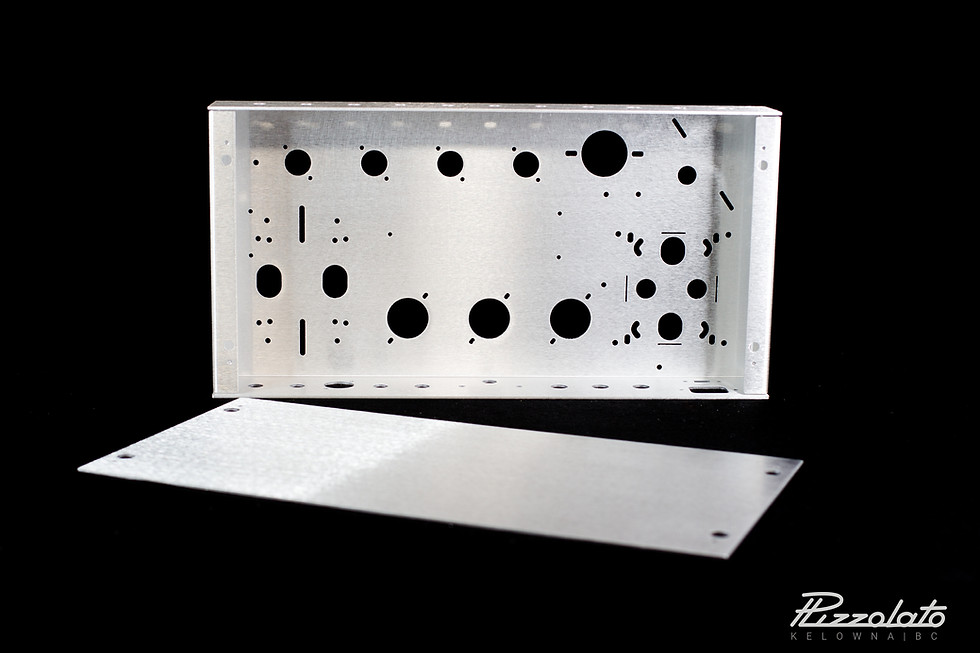

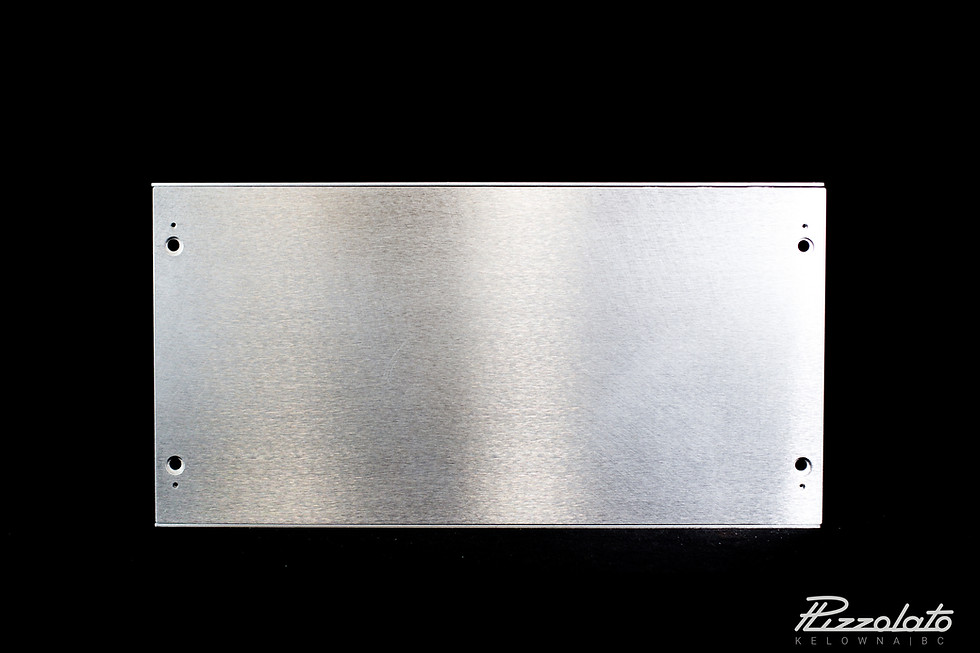

- Lid
- Screws for lid
- Chassis connection for earth ground (Solder lug screwed with stainless steel screw/nut and covered with aluminum solder to help prevent galvanic corrosion).
What can be ordered separately?
- Socket covers
- 8-pin socket hole to 9-pin adapter plate
- Eyelet board and Stand-offs
- Custom faceplates

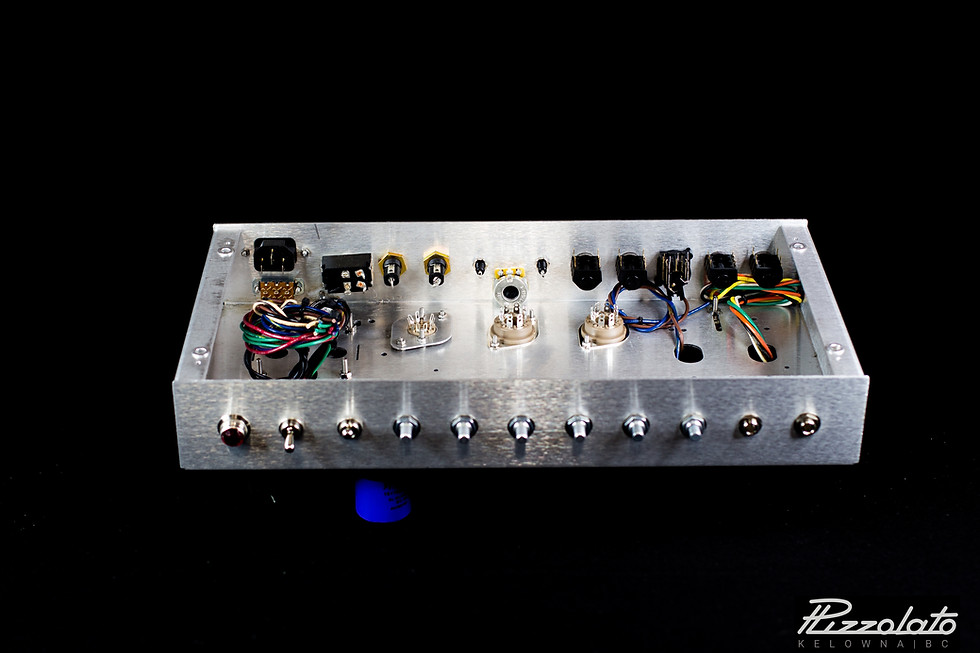

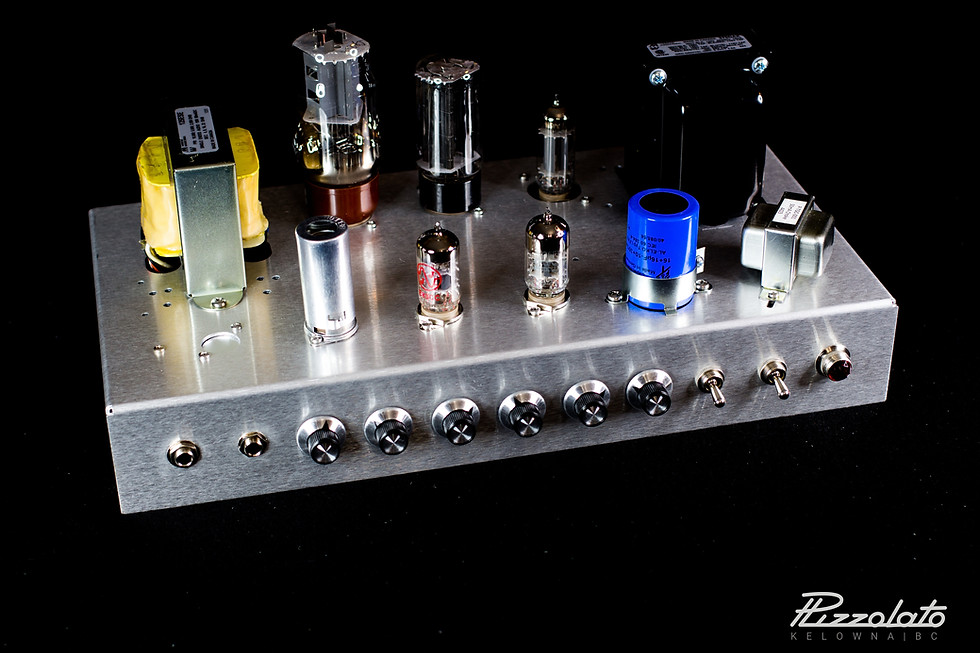

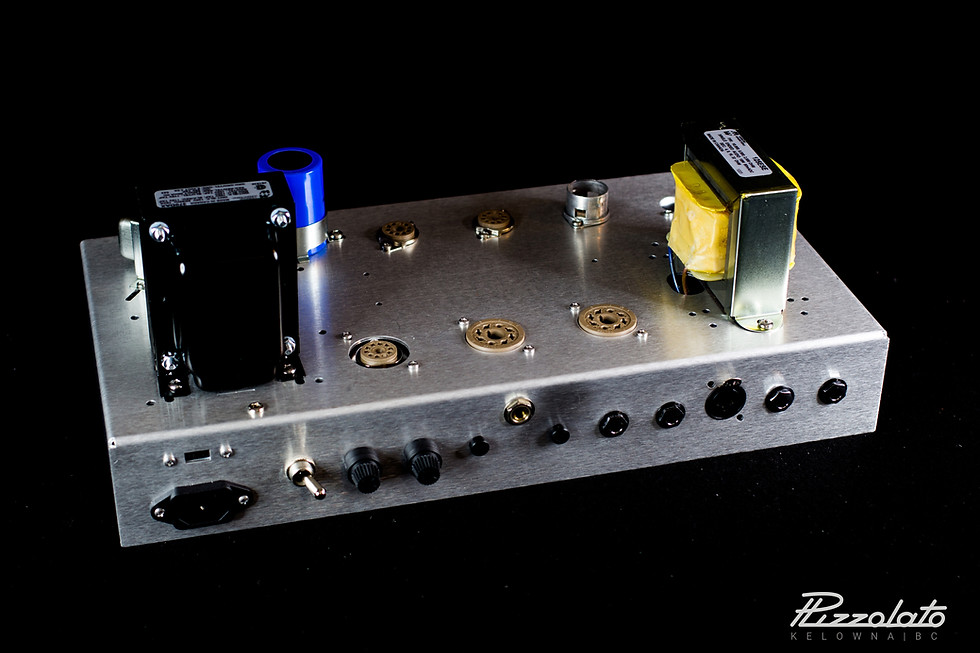

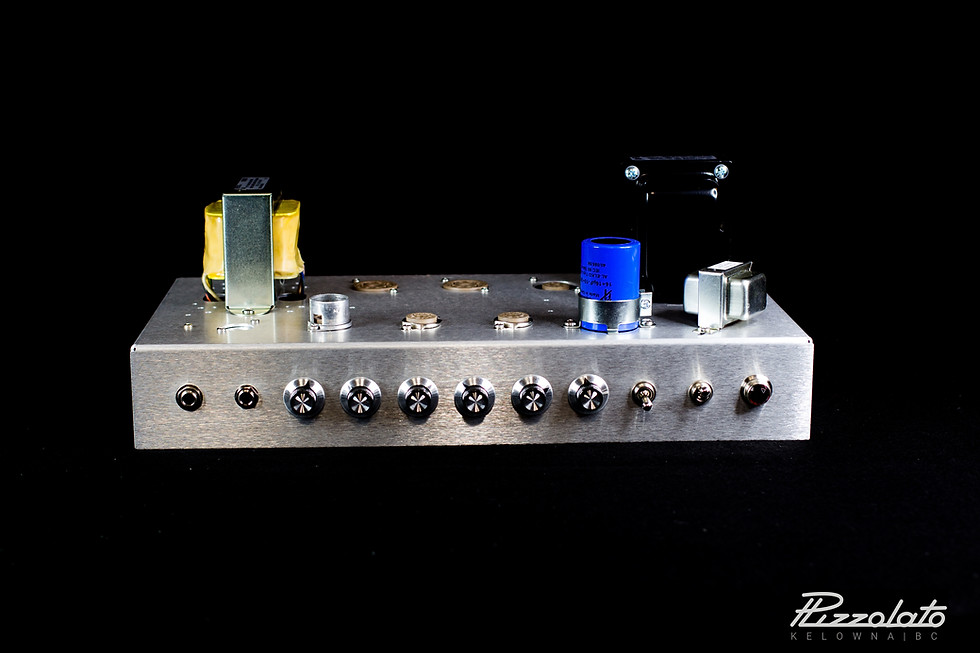

Note: Last pictures are not of a real amplifier circuit, it is just an example of how the chassis holes can be used.

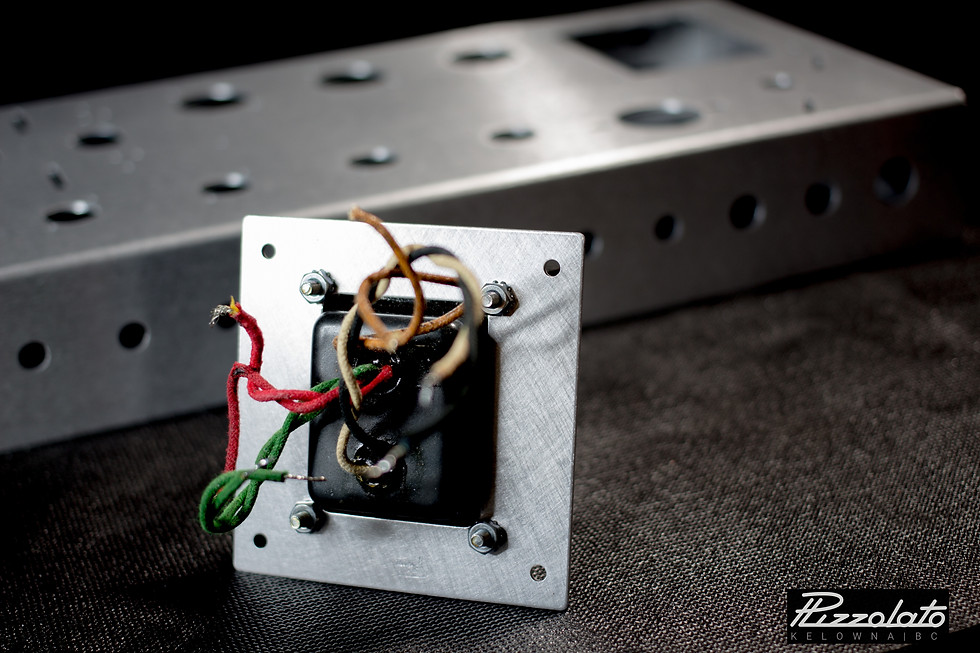

List of direct drop-in Hammond Transformers
Power Transformers
Vertical Mount:
270DX
270DAX
272DX
272HX
273BX
370DX
370DAX
300P
Horizontal Mount:
290AX - Fender Bronco/Champ/Princeton Reverb
291AEX - Fender Bronco/Champ/Princeton Reverb
290BX - Deluxe/Deluxe Reverb
290CEZ - Vox AC15C1
290GX - Marshall JCM800/JMP 50W
290KX - Marshall JCM900/JCM2000 50W
290PX - Vox AC30
Output Transformers:
1650N
1650K
1750C
1750H
1750N
1760C
1760E
1760H
1760J
1760L
1750Y
125-Series
Chokes:
194A
194B
List of Holes
Front Panel
- 8 holes for jacks or potentiometers (3/8")
- 2 holes for switches (e.g. Carling - Fender Style) (1/2")
- 1 hole for Fender Style Pilot Lamp Holder

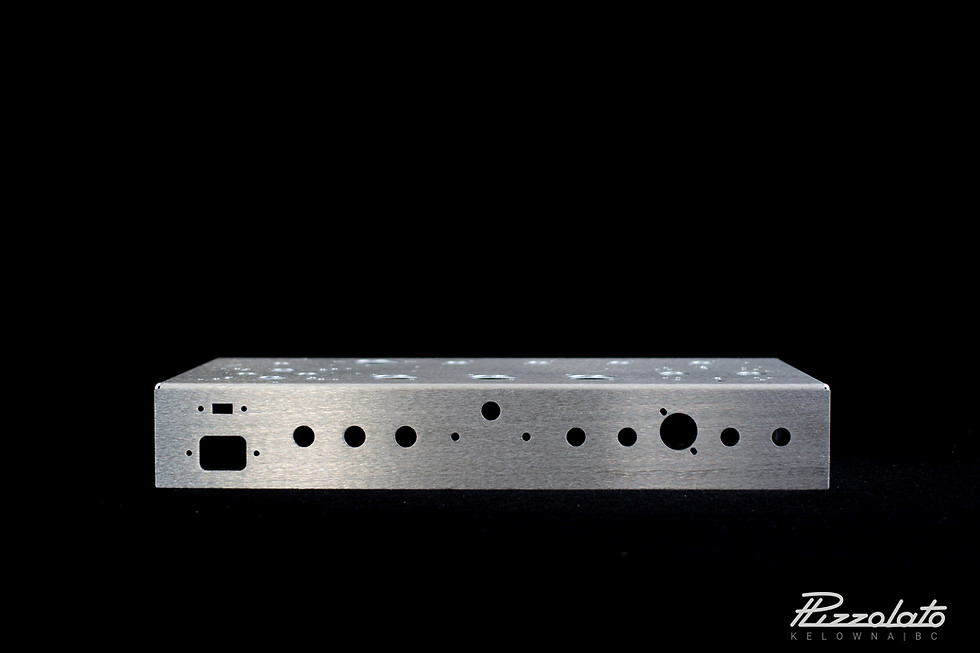

Back Panel
- 1 hole fore Switchcraft style voltage selector switch
- 1 hole for IEC Power Connector
- 3 holes for switches or fuse holders (1/2")
- 2 pilot* holes for tip jacks (bias check point)
* These can be enlarged and repurposed if needed - 1 hole for bias pot located in between the tip jack holes (3/8")
- 4 holes for jacks or potentiometers (3/8")
- 1 hole for panel mount Amphenol AC3 XLR connector**
** It may be necessary to enlarge a bit if other brands are used.

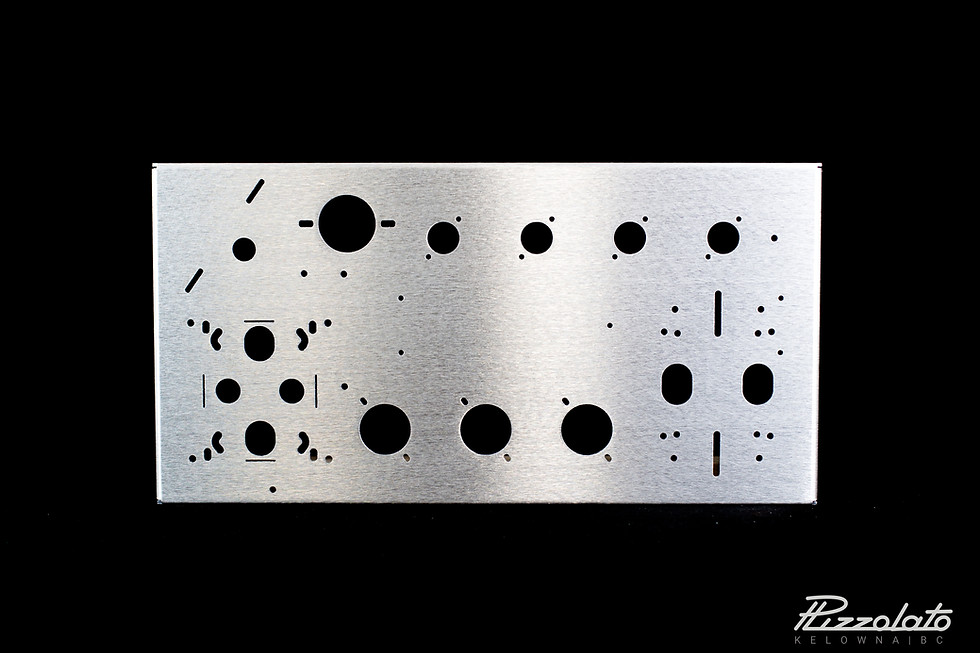

Top Panel
- 3 holes for 8-pin tube sockets (can be repurpose for capacitor cans or for 9-pin sockets using our 9-pin plates)
- 1 hole for big capacitor can (can be repurposed to 8-pin socket)

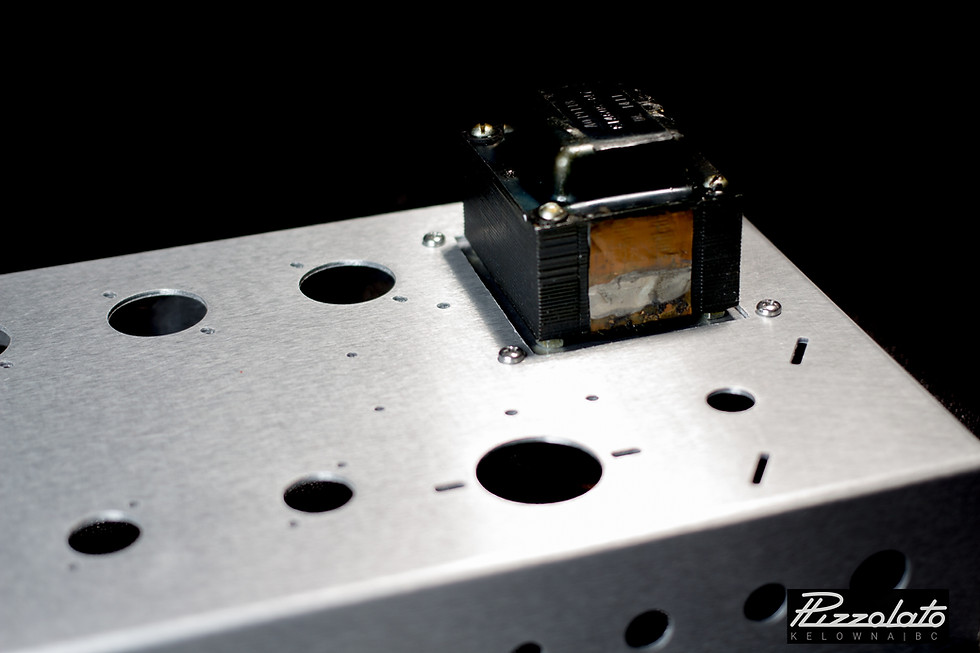

- 1 space with holes for small chokes or transformers
- 1 space with holes for power transformer (see list of direct drop-in)
- 1 space with holes for outout transformer (see list of direct drop-in)
- 4 holes for 9-pin tube sockets
- 5 holes to for stand-offs to secure eyelet or turret boards
